KKPIT RTS 4268 2050KV Adjustable Timing 4-Pole Sensored Brushless Motor

Engineered for precision and power, RTS 4268 motor delivers high-performance output with customizable timing and enhanced control—ideal for serious RC enthusiasts and competitive setups.

This motor offers several advantages for performance-focused users. The wide timing adjustment range (10°–50°) allows for flexible tuning between torque and RPM, catering to different driving styles and track conditions. The 4-pole rotor delivers exceptional torque and smoother acceleration, while the Hall sensor system enhances low-speed control and reduces cogging—especially beneficial in technical driving scenarios.

This 4268 motor is ideally suited for 1/8 scale RC vehicles, including buggies, truggies, and on-road racers that demand high torque and responsive throttle control. Its sensored design and adjustable mechanical timing make it a top choice for competitive setups where precision tuning is essential.

Key Features & Specs

• Pre-soldered 250mm/9.84″ power wires with sensored cable and 6.5mm/0.26″ gold-plated banana connectors for plug-and-play installation

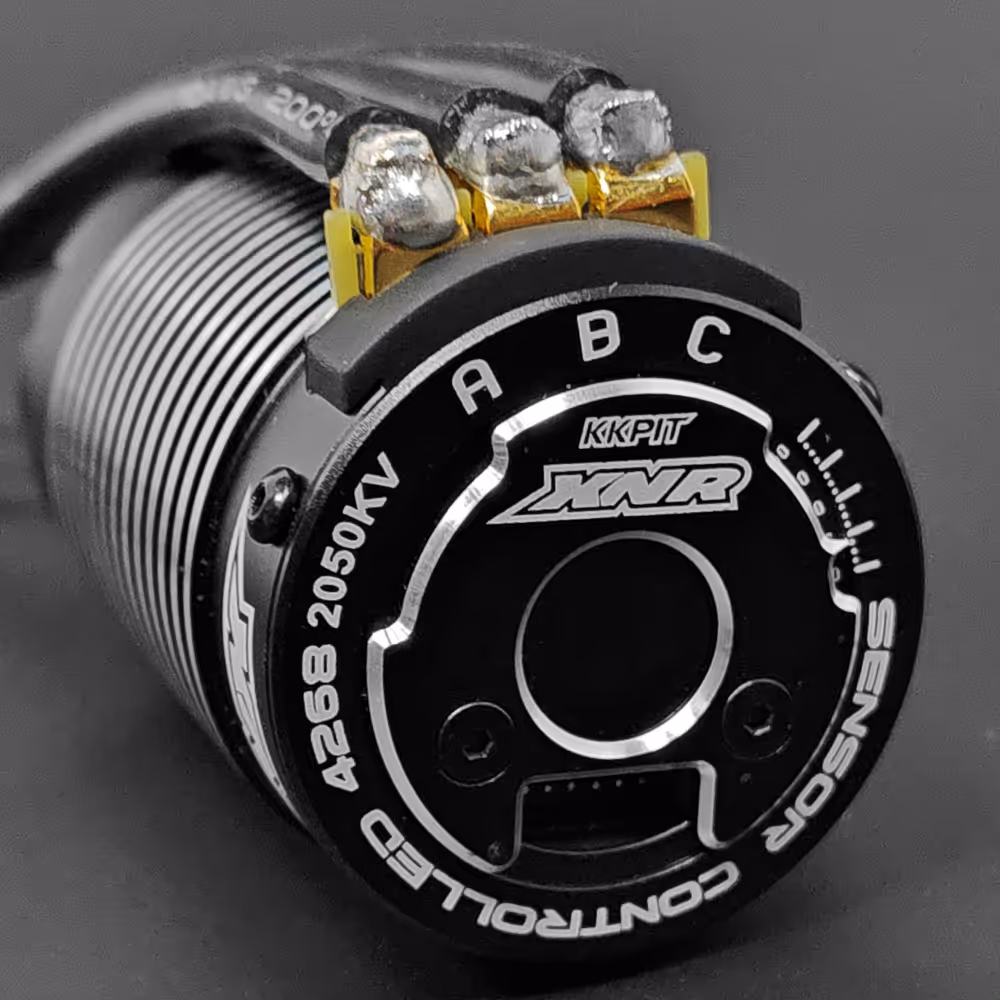

• Adjustable mechanical timing from 10° to 50° (default 20°), allowing users to fine-tune torque and RPM balance
  • Higher timing: Increased RPM, reduced torque
  • Lower timing: Increased torque, reduced RPM
• 4-pole rotor design for superior torque and smoother acceleration
• Integrated Hall sensor for precise throttle response and low cogging

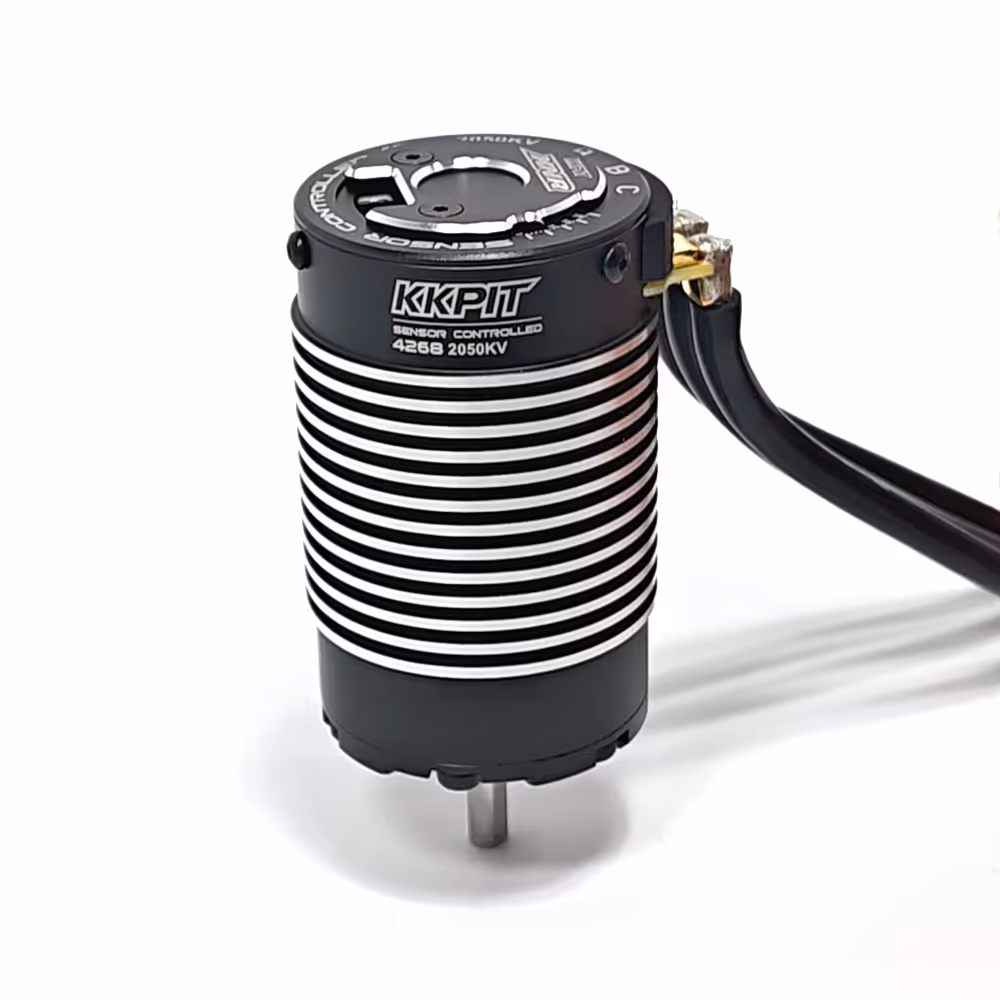

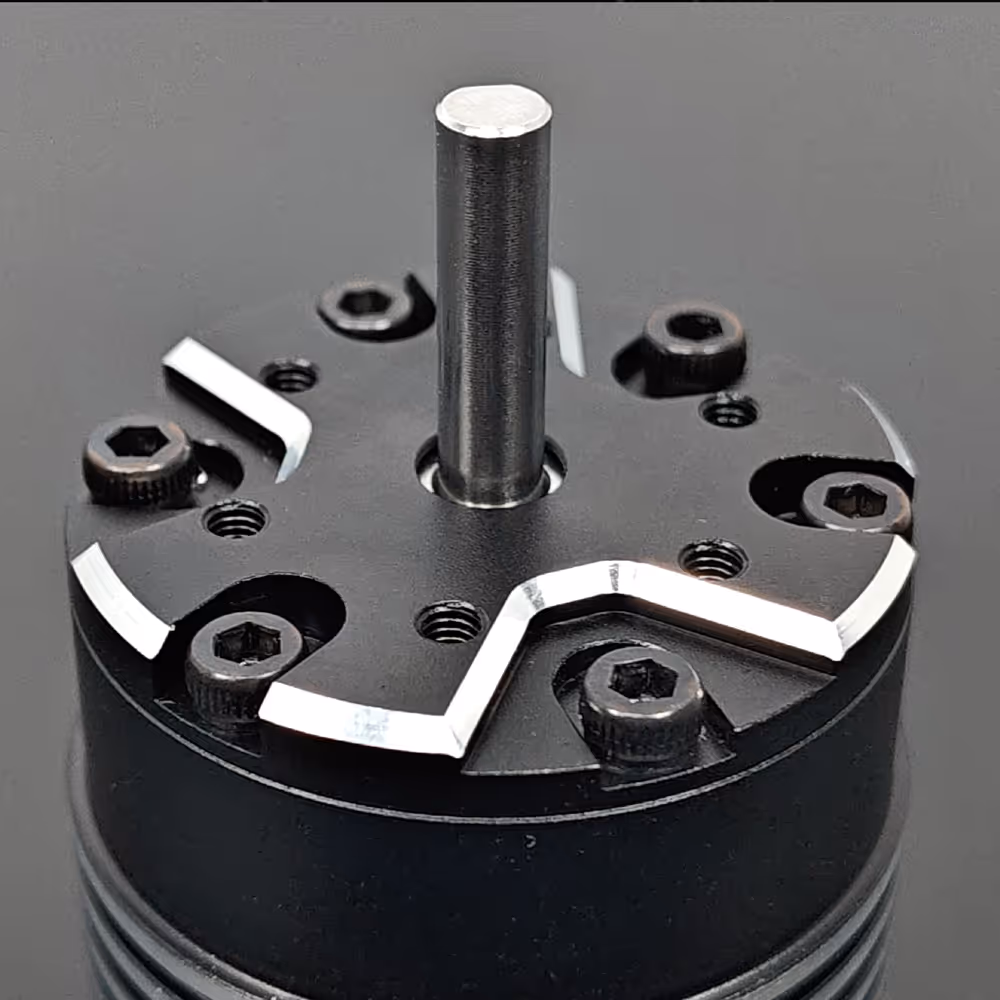

• Motor dimensions: Ø42mm × 69mm (excluding shaft) / Ø1.65″ × 2.72″; shaft length: 18.2mm exposed / 0.72″
• No-load current 4.3A, resistance 4mΩ, Weight 404g
