Stainless Steel 2.2 Wheel Weights for LCG Comp Crawlers & Capra Axles (V1 System)

Overview

Elevate your crawling performance with the V1 Precision Stainless Steel Wheel Weight System. Specifically engineered for tube chassis rigs, shaft crawlers, and competitive LCG builds, this weight system utilizes 304 stainless steel to drop your unsprung weight and lower your center of gravity by up to 20mm+ compared to traditional brass cover weights of similar mass.

Maximum Weight Concentration & Lower Center of Gravity

By squeezing every millimeter of internal wheel clearance, this system places the mass as low and wide as possible. Fully customizable from 10g to 60g per side (using up to 5–6 weight segments), allowing you to fine-tune weight, tilt angle, and position with extreme precision. While V2 Tungsten is ideal for heavy front-end bias, the V1 Stainless Steel system is optimized primarily for rear axle balancing and fine-tuning.

Key Features & Specifications

• 304 Stainless Steel Construction: High-durability stainless steel enables a lower profile and significantly lower center of gravity compared to traditional brass counterweights.
• Modular & Adjustable Weight System: Uses ~10g individual stainless steel weight plates (5mm thickness each). Stack up to 5–6 plates per side for precise tuning between 10g and 60g.

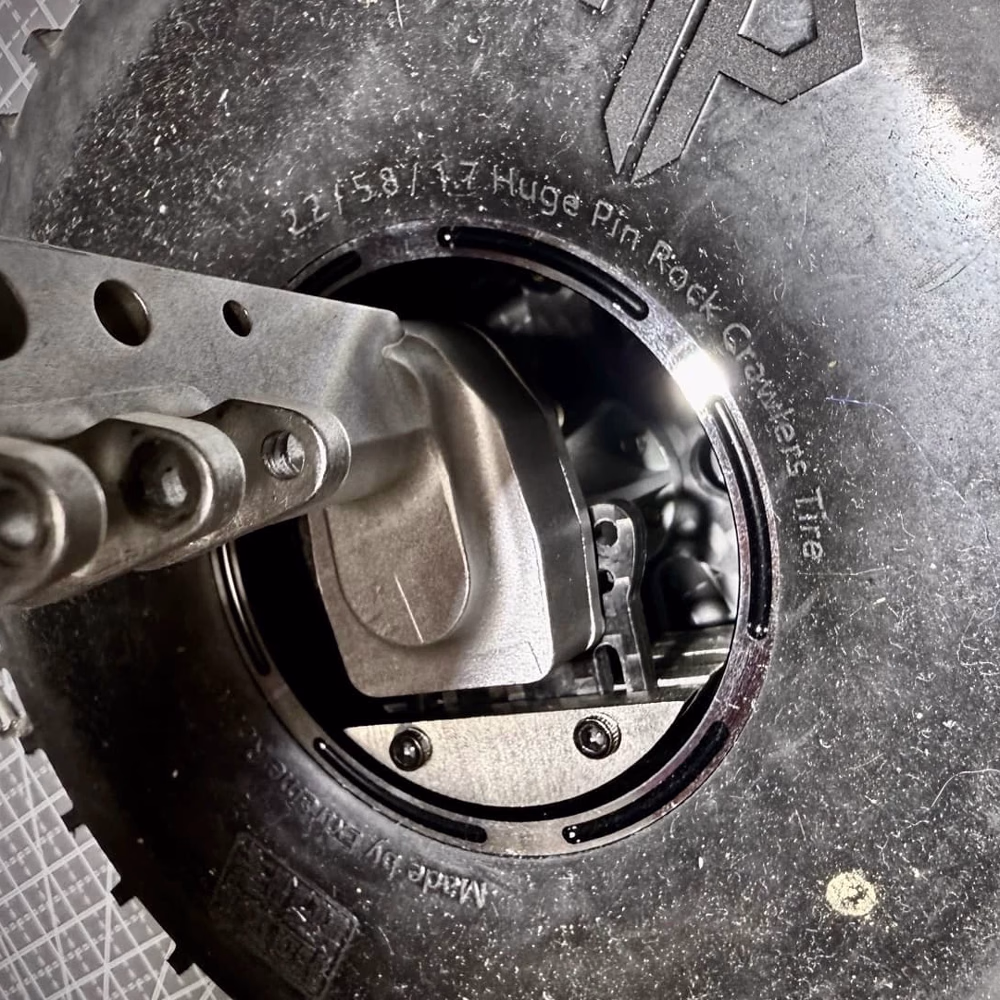

• Versatile Wheel Compatibility: Fits wheels with an effective inner diameter of 47mm to 56mm. Compatible with mainstream 2.2″ wheels, Extreme Route 1.9″ Max wheels, and select aluminum standoff wheels.
• Adjustable Carbon Fiber Adapters: Includes 3mm carbon fiber adapter plates with indexed markings, allowing full adjustment of weight tilt angle and vertical height to match your specific wheel barrel size.

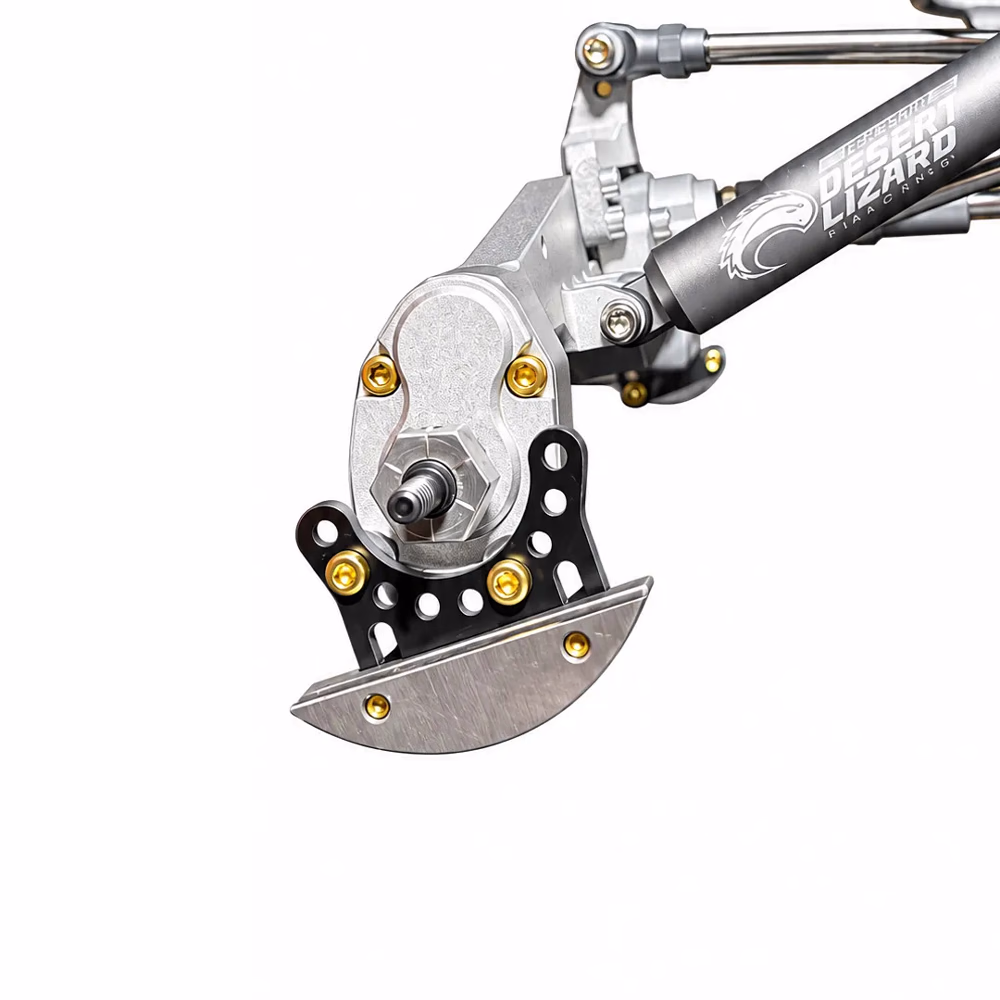

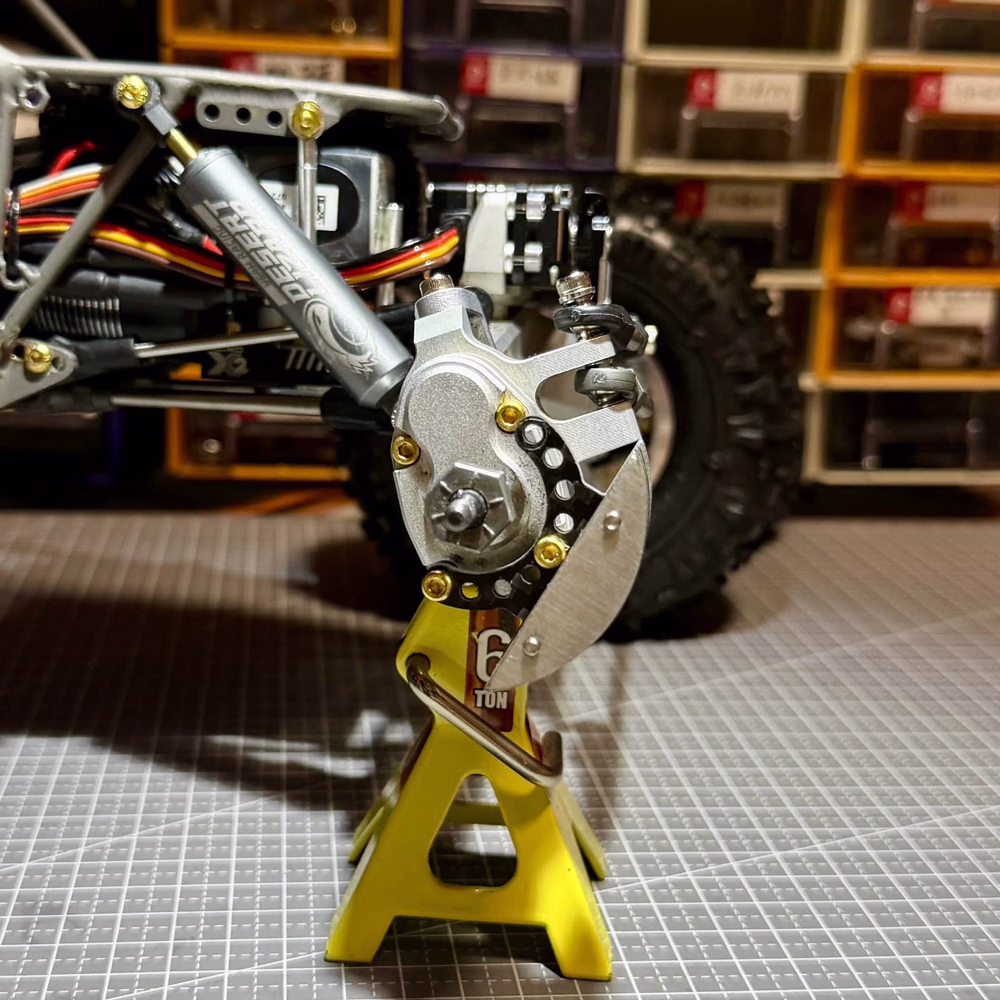

• Axle Compatibility: Extensively tested on Capra-style (6061 / 7075) offset axles. Recommended primarily for rear axle installation.

Fitment & Test Data Example

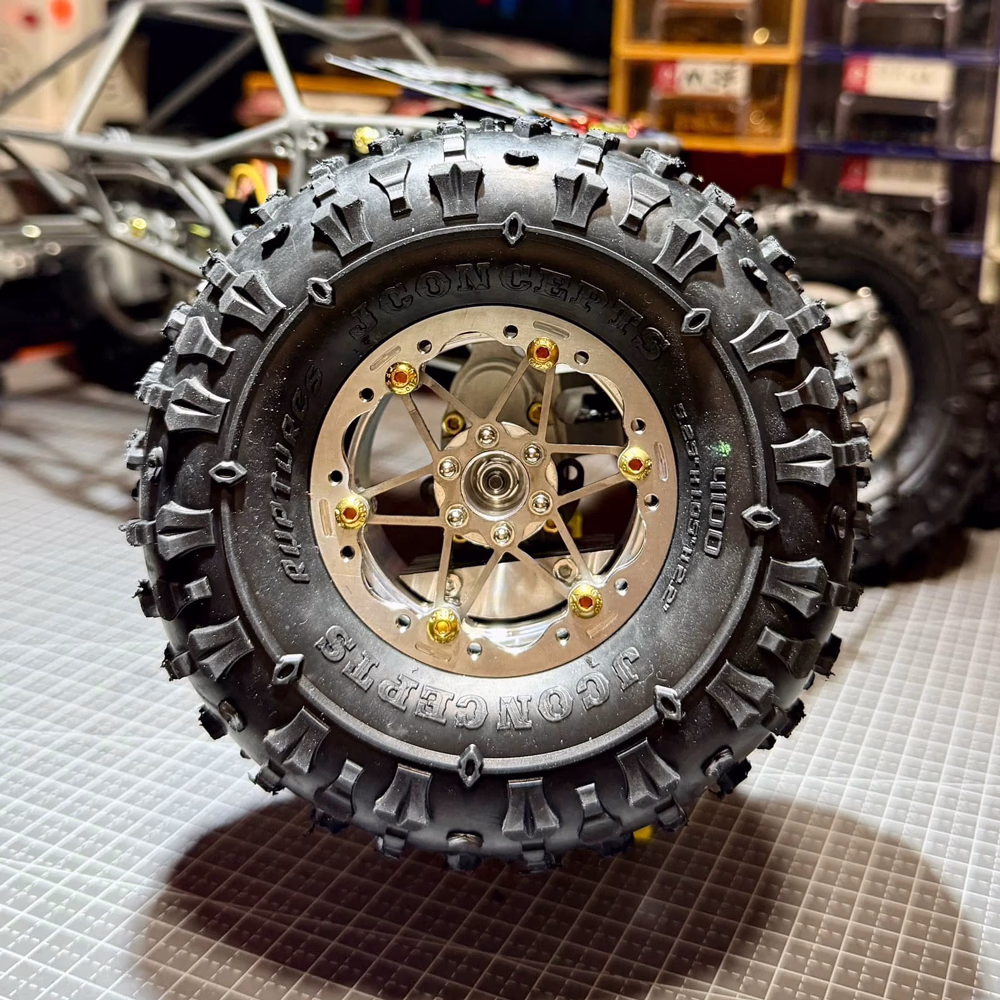

• Fitted Wheels: Extreme Route 2.2″ Max wheels (52mm inner diameter) and Titanium wheels (55mm inner diameter) paired with 22mm wheel hex hubs.
• Capacity: Extreme Route Max wheels can hold up to 4 segments on the outer side (40g) and 1–2 segments on the inner side, achieving a maximum single-side weight of ~60g.
