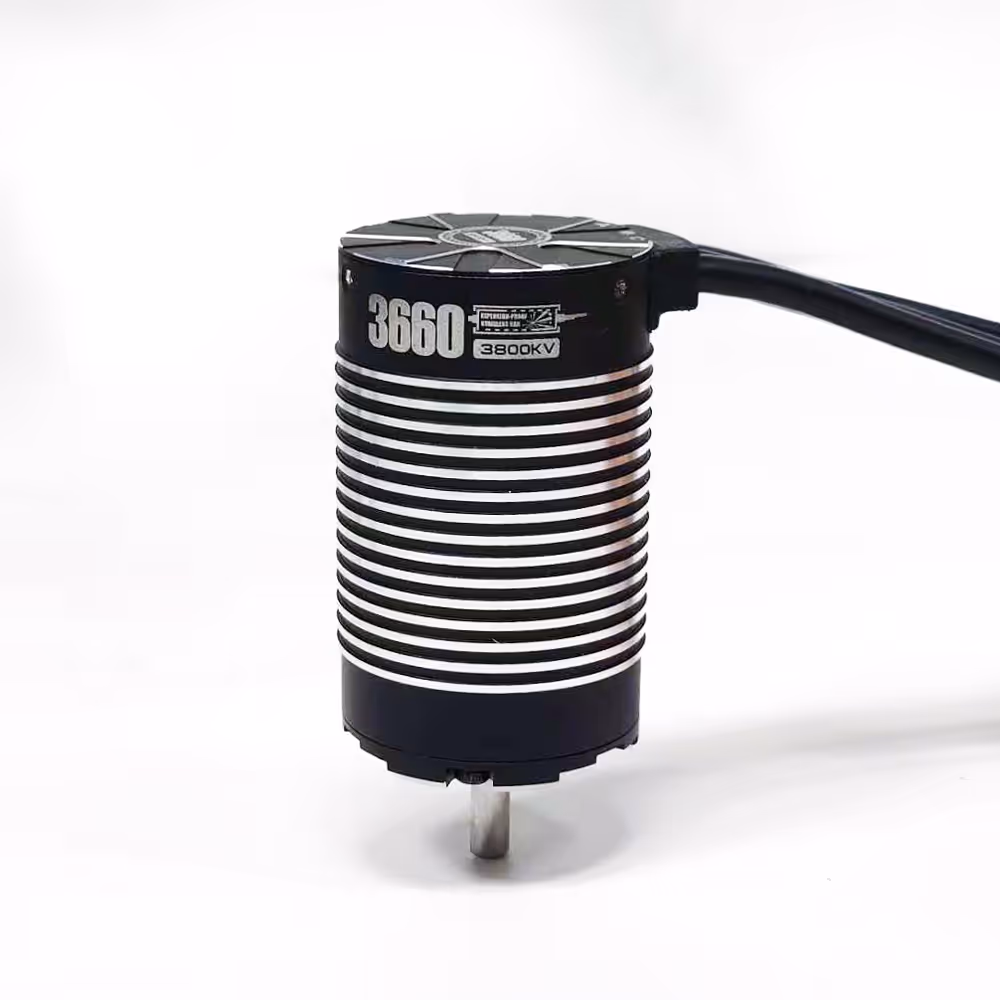

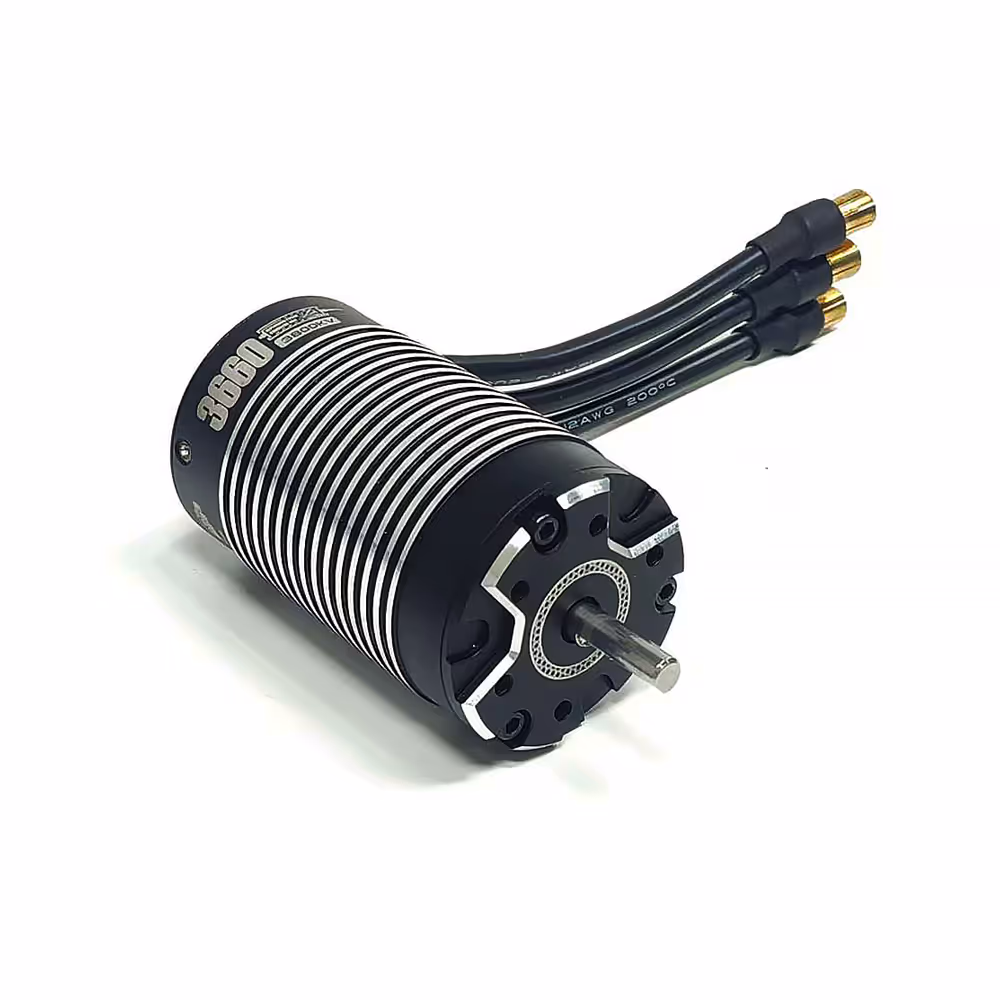

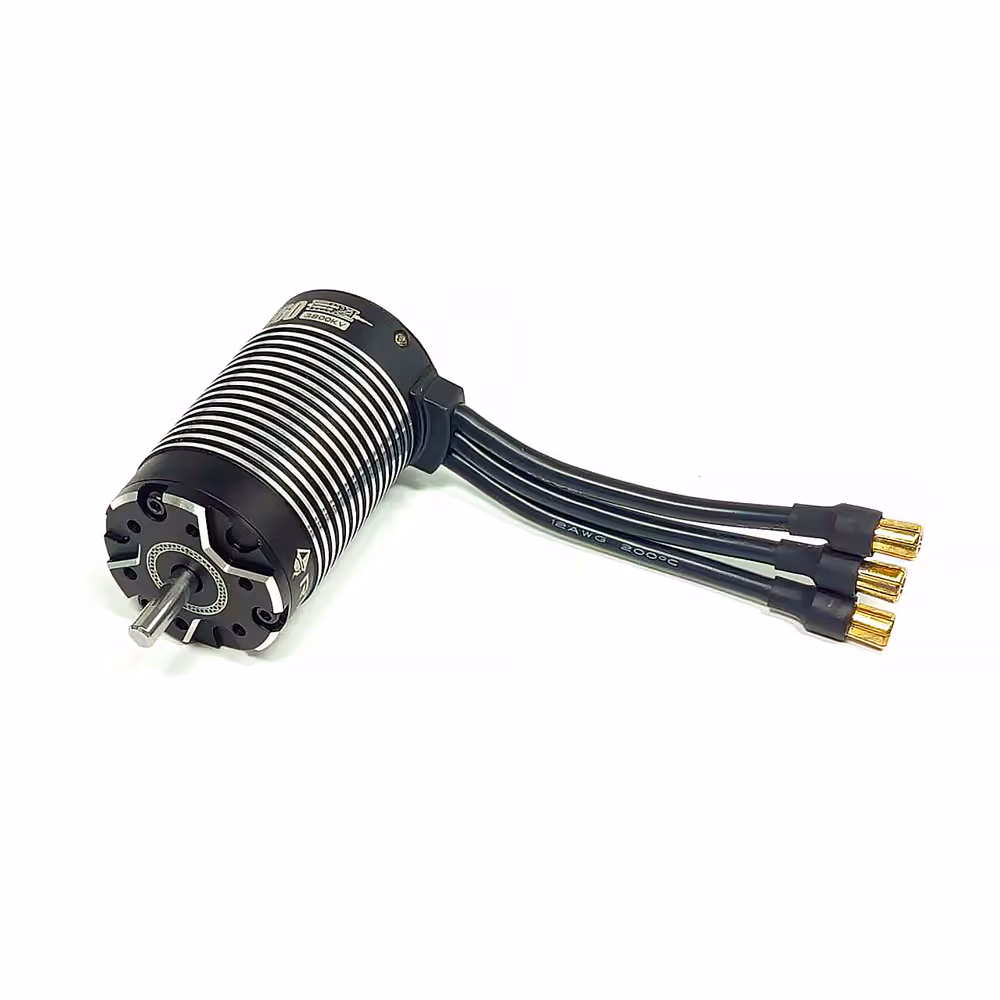

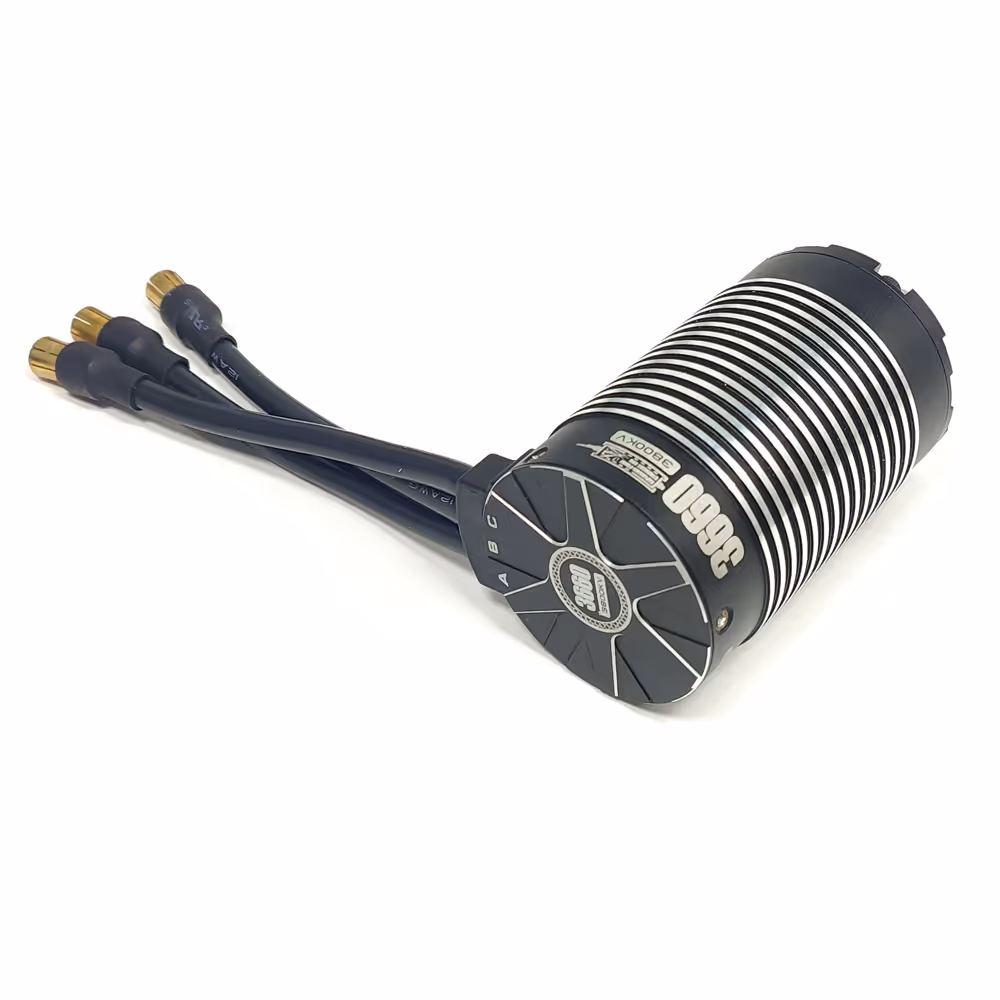

KKPIT RTS-X 3660 3800KV Brushless Motor Waterproof & Dustproof for 1/10 RC Cars

RTS X-Series – High-End Sensorless Brushless Motor Born for the Extreme

The RTS X-Series motor is designed for uncompromising performance in 1/10 scale RC vehicles such as short course trucks, off-road buggies, truggies, and monster trucks. With 220°C high-temperature enameled wire, a reinforced explosion-proof rotor, and an ultra-high slot fill design, the motor core is virtually indestructible. A CNC-machined aluminum housing with high-density cooling fins improves heat dissipation efficiency by up to 30%, ensuring continuous peak power.

Unlike low-cost direct wiring, the X-Series employs thick copper terminals and high-temperature silicone wires for superior conductivity and reliability. Every detail is optimized to deliver an ultimate power experience under extreme conditions.

Performance Advantages

• High-temperature wire withstands 220°C, a 46.6% improvement over conventional 150°C wires.
• Lower resistance (4.9 mΩ) enables higher current flow and greater efficiency.

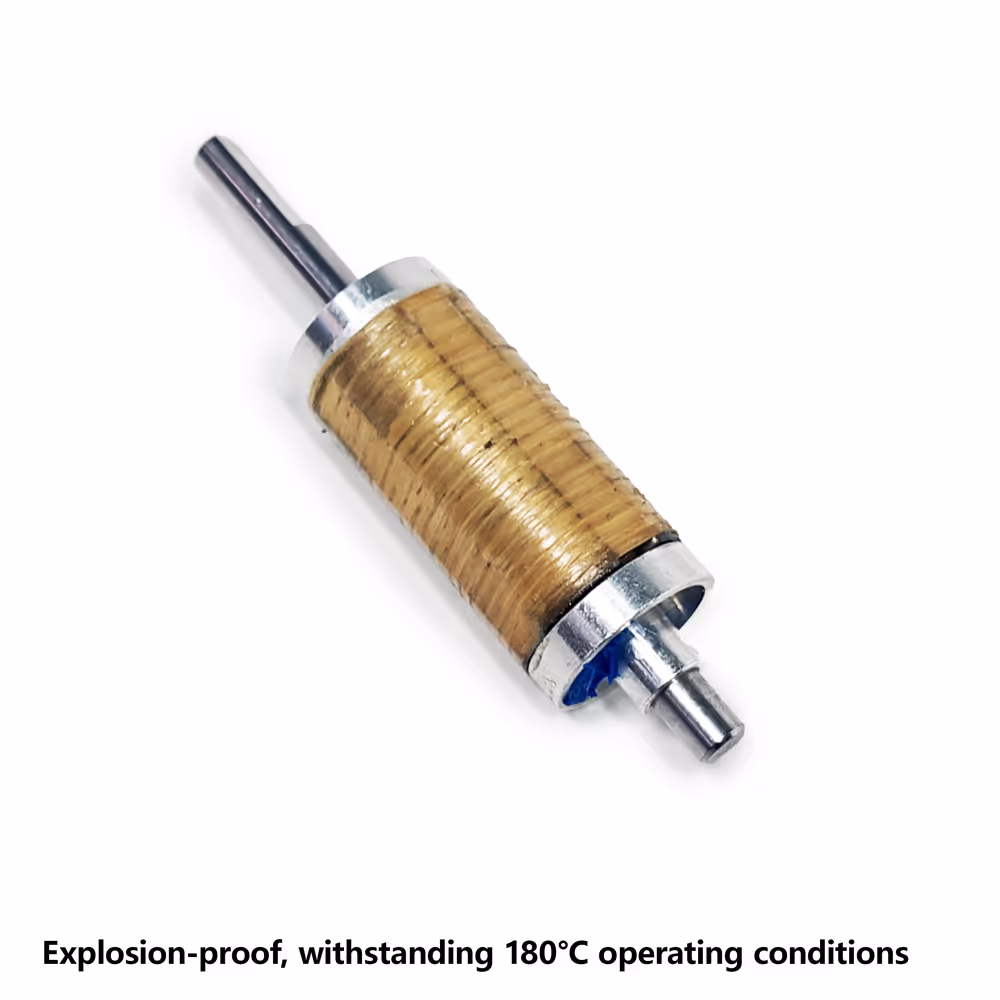

• Explosion-proof rotor ensures maximum reliability under heavy loads.
• Withstands 180°C operating conditions, offering 66.6% higher thermal endurance than standard motors.

Technical Specifications

• Type: Brushless, Sensorless
• Poles: 4
• KV Rating: 3800KV
• Supported LiPo Cells: 2–4S
• No-load Current: 5.3A
• Max Load Current: 100A
• Max Power: 1300W
• Resistance: 4.9 mΩ
• Dimensions: Ø36.8 × 61 mm
• Shaft Diameter: 5 mm
• Weight: 252 g

Recommended Applications

• 1/10 Short Course Trucks
• 1/10 Off-road Buggies & Truggies
• 1/10 Monster Trucks
• Suitable for high-power, high-temperature, and extreme racing environments
