Shark 1/10 Titanium Tube Cage LCG Performance Crawler (Aerospace-Grade 3D Printed)

Next-Level LCG Performance Meets Aerospace-Grade Engineering

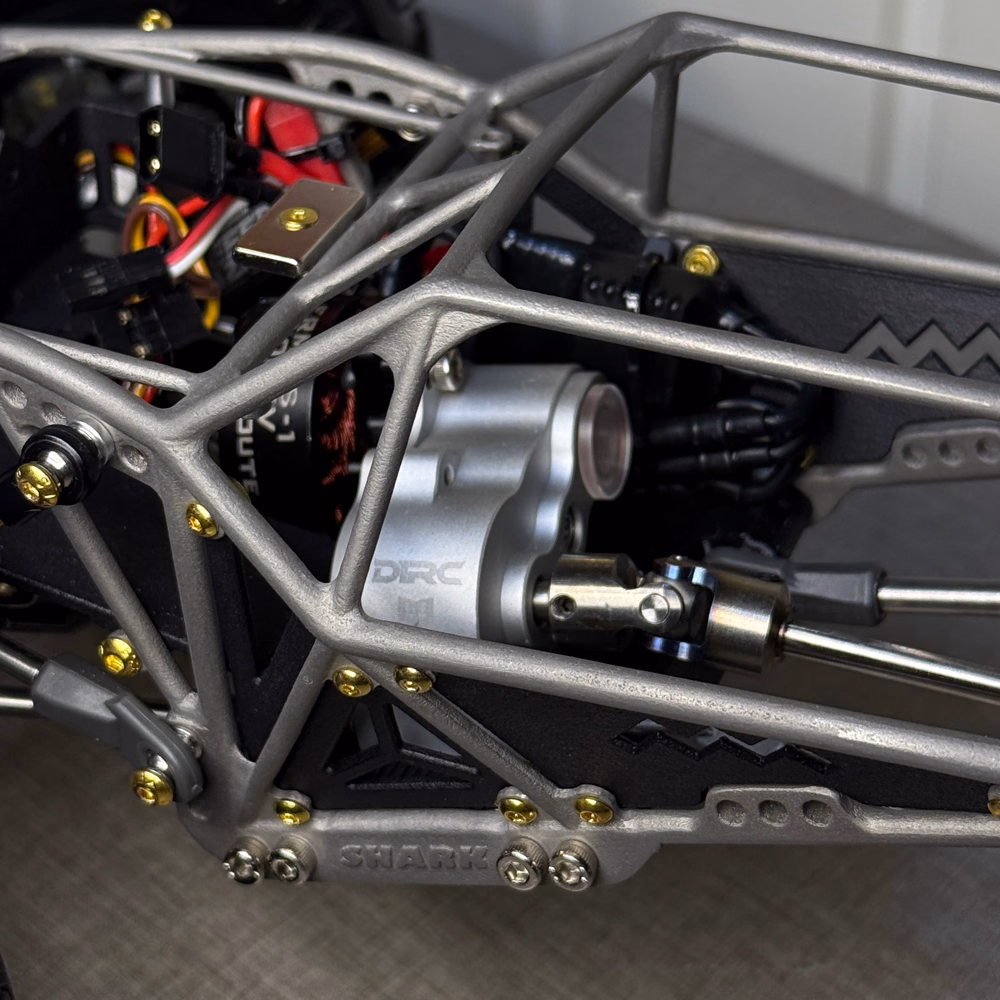

Introducing the 1/10 Shark Titanium Tube Cage Crawler—a revolutionary LCG performance chassis built for extreme rock crawling and steep incline performance. Designed completely in SolidWorks (SW) and manufactured using aerospace-grade 3D-printed titanium, the Shark cage delivers forging-level structural integrity with flawless precision that far surpasses traditional hand-welded tube cages.

Every chassis undergoes an 800°C heat-treatment process followed by a refined sandblasted finish, giving it a sleek, uniform matte texture while keeping the cage weight down to an astonishing 140g–150g.

Key Features & Structural Highlights

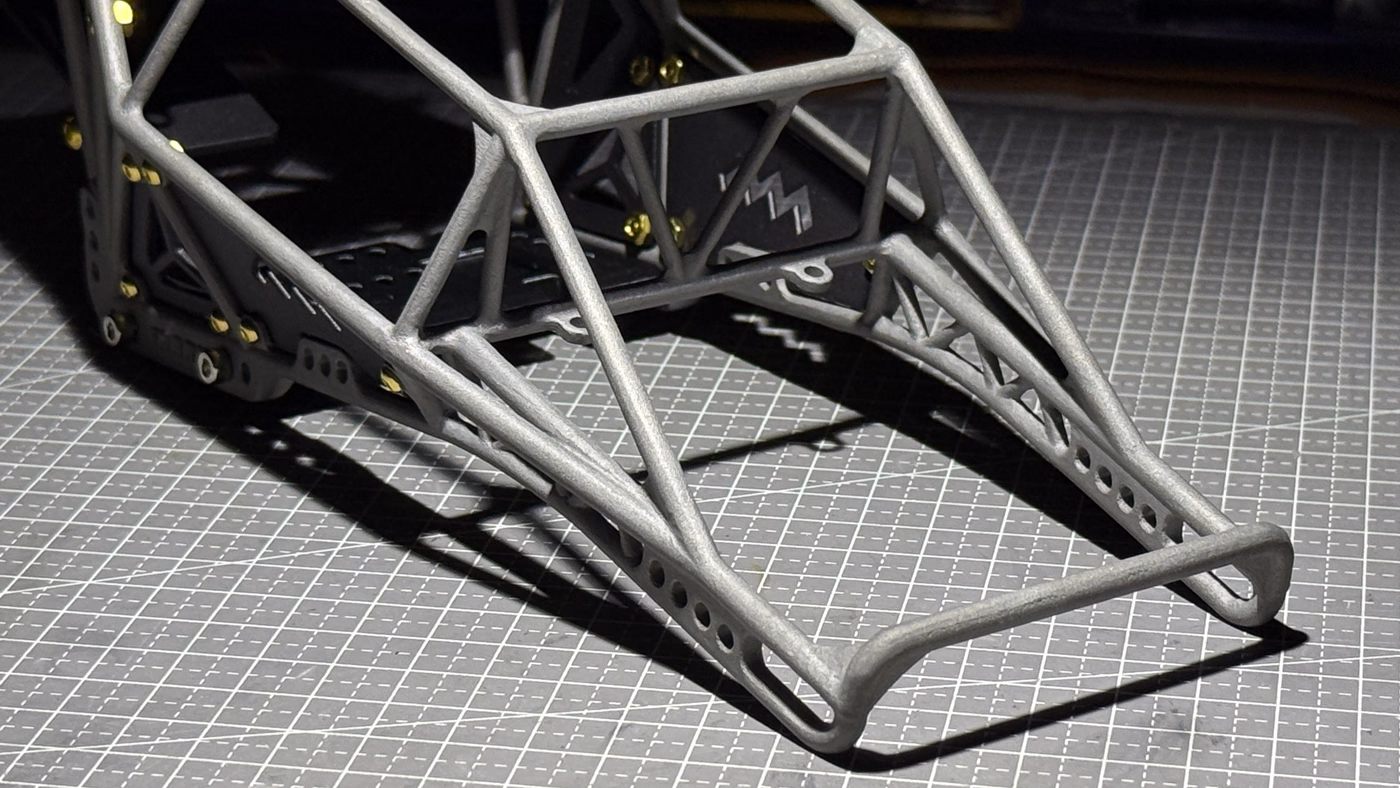

• Aerospace 3D-Printed Titanium Cage: Superior consistency and mechanical strength close to forged components, eliminating alignment errors common in hand-welded steel cages.
• Ultra-Low Center of Gravity (LCG): Designed without a skid cross-bridge for maximum belly clearance on high-angle rock faces.

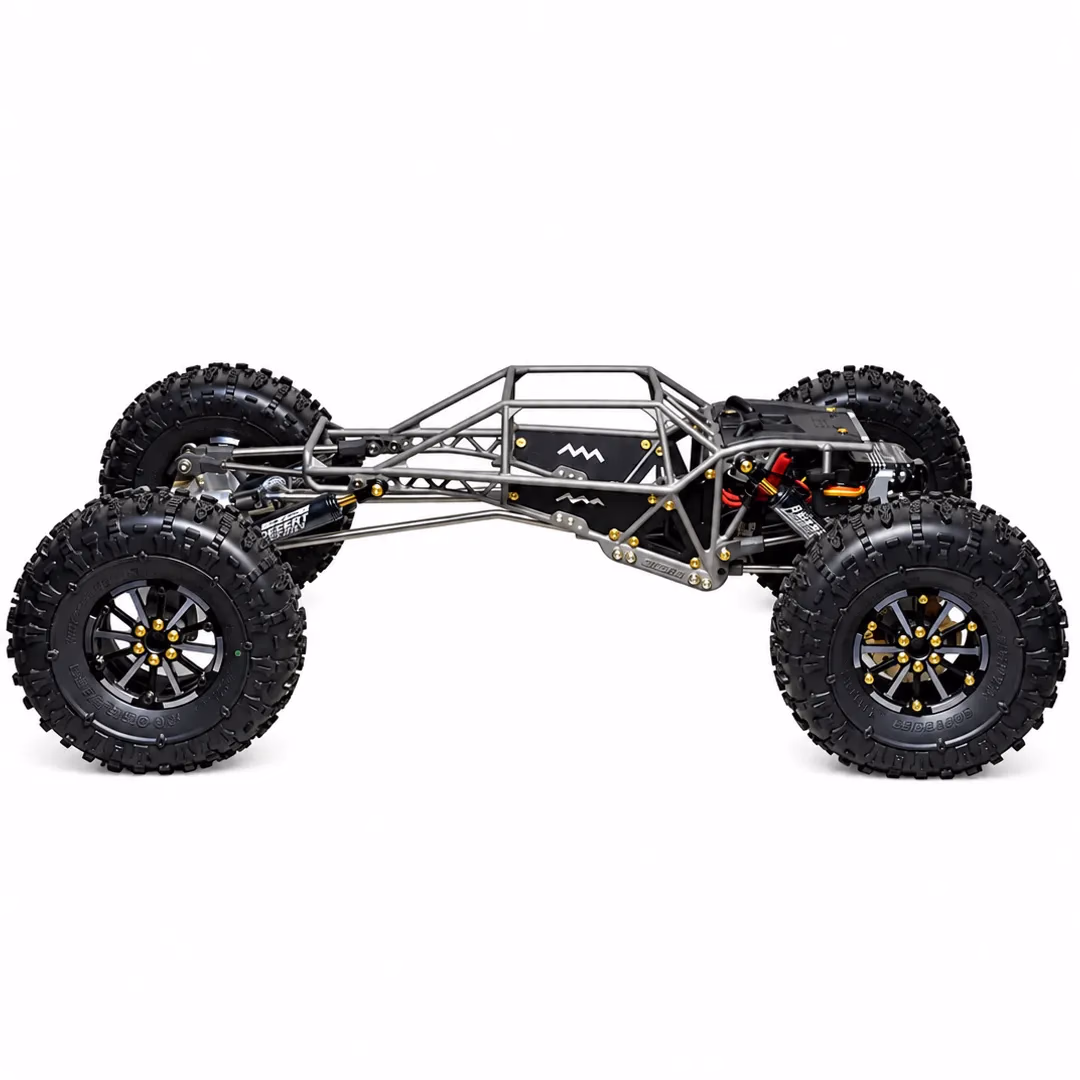

• Versatile Compatibility: Fits both 1.9″ and 2.2″ wheel setups with a recommended wheelbase of 313mm to 345mm (340mm shown in images).

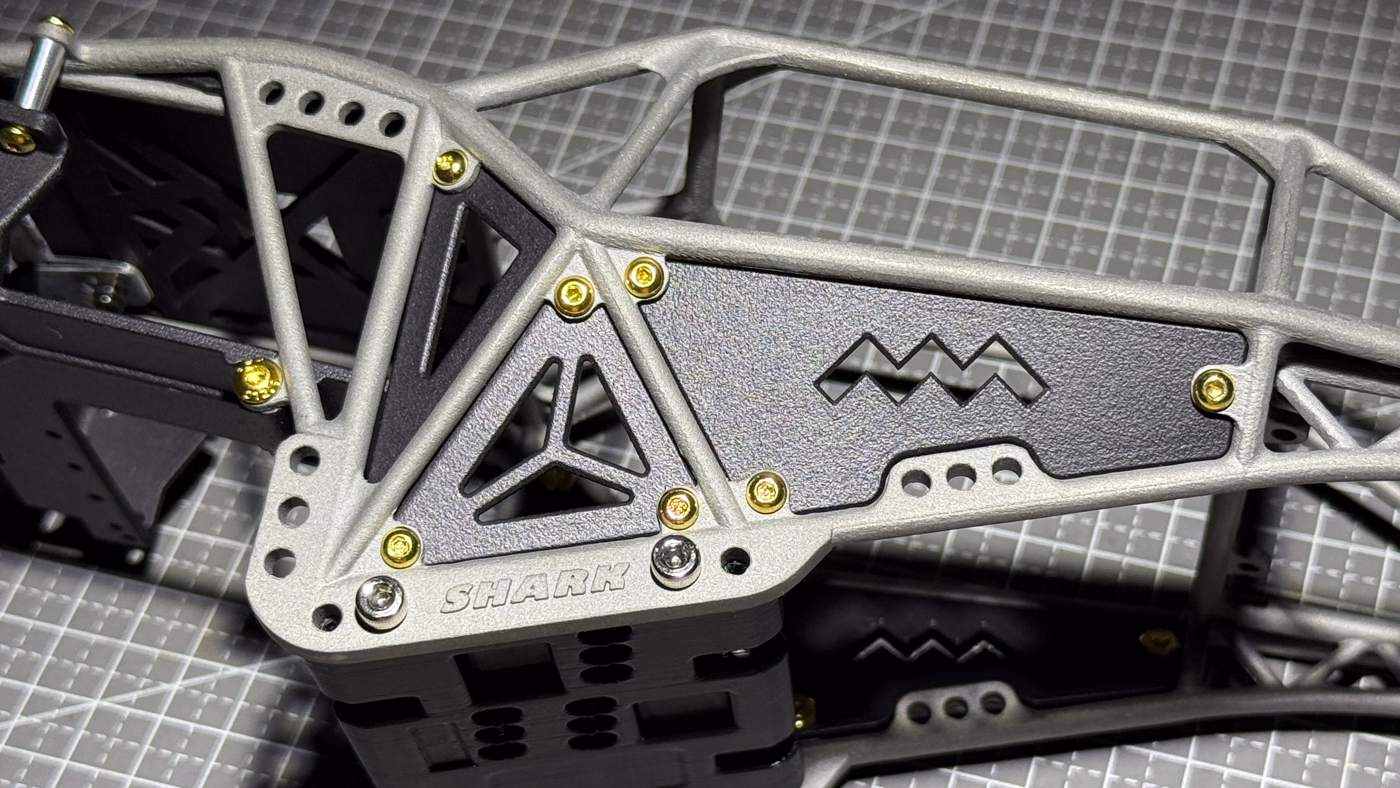

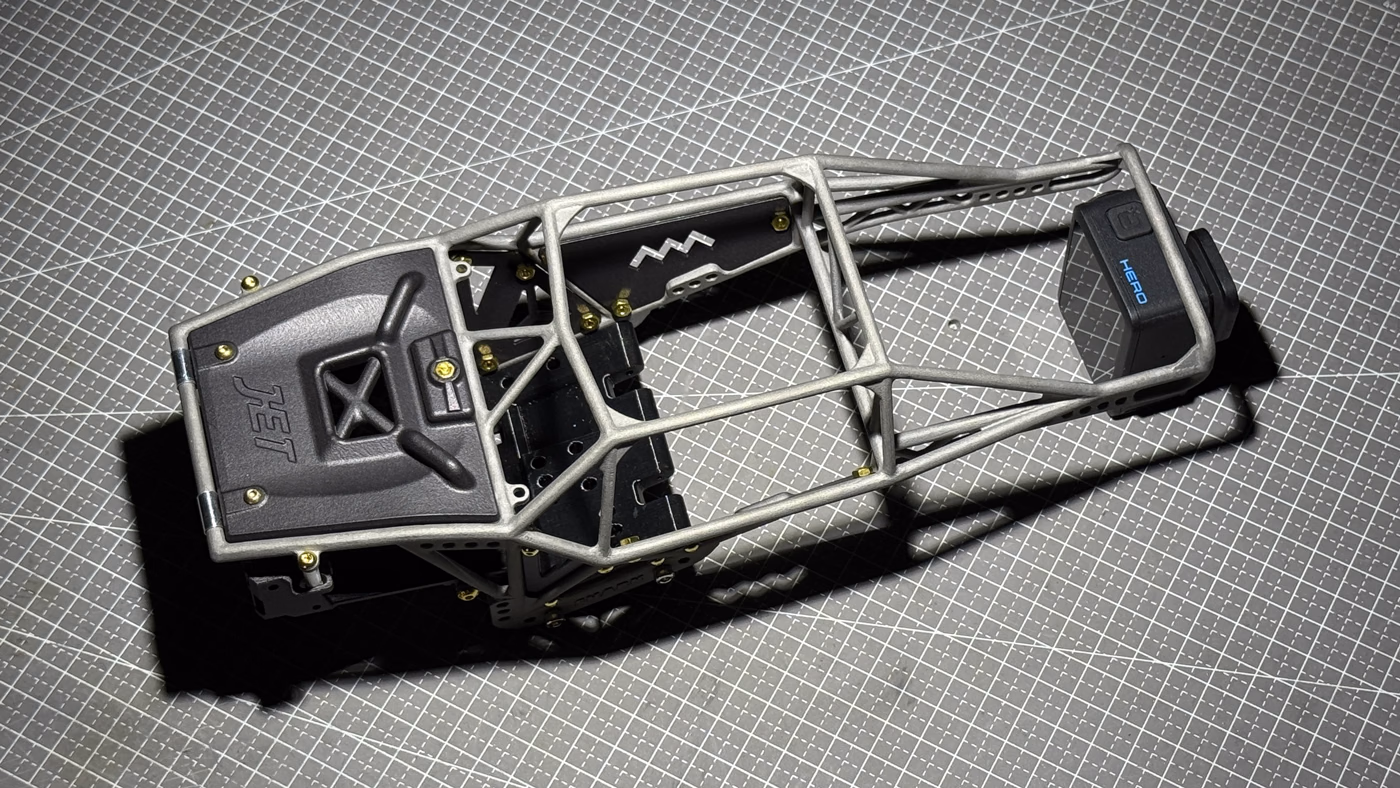

• Premium PA12 & TPU Components: Includes high-durability PA12 nylon hood with magnetic mounts, PA12 side panels, battery tray, and high-toughness TPU skid plate.
• Titanium Links & Machined Drivetrain: Comes standard with 8 titanium suspension links with rod ends, machined steel drive shafts, and a 3D-printed titanium rear anti-squat mount.

Recommended Electronics & Build Setup

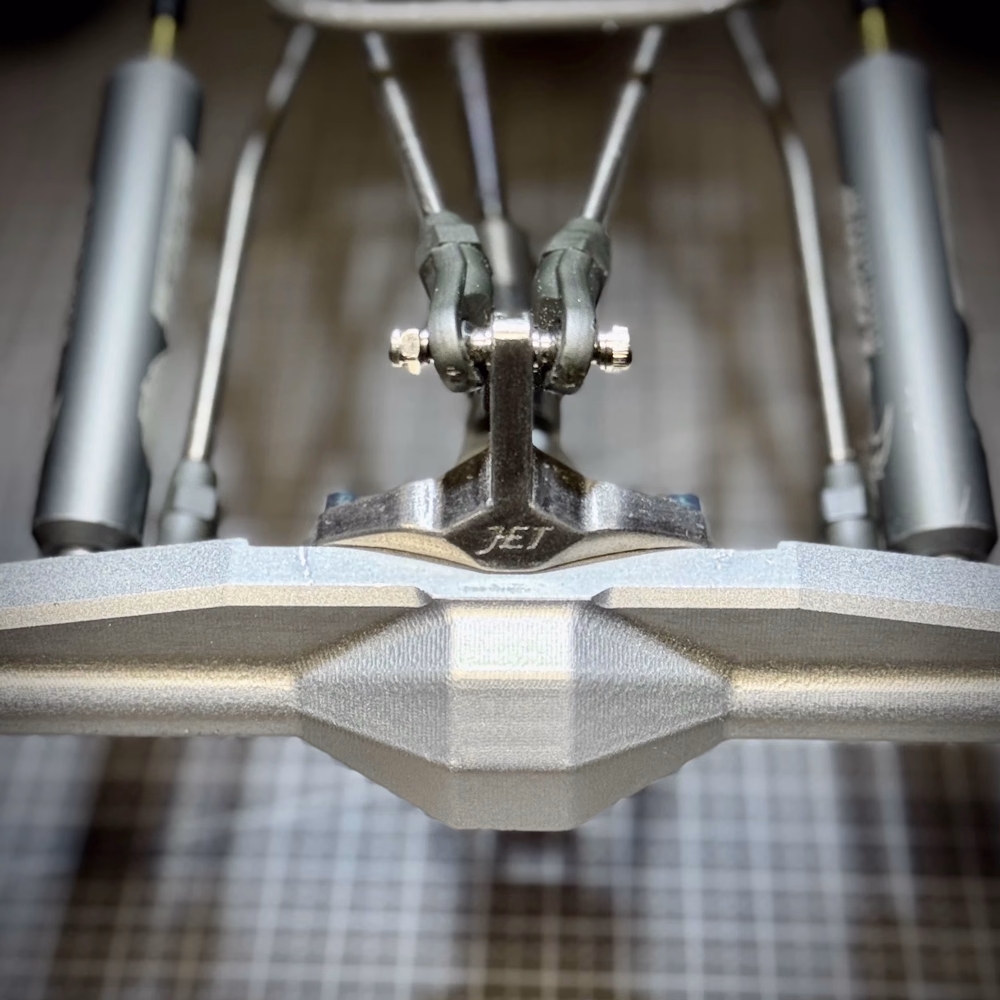

• Axles: Mainstream Capra-style axles

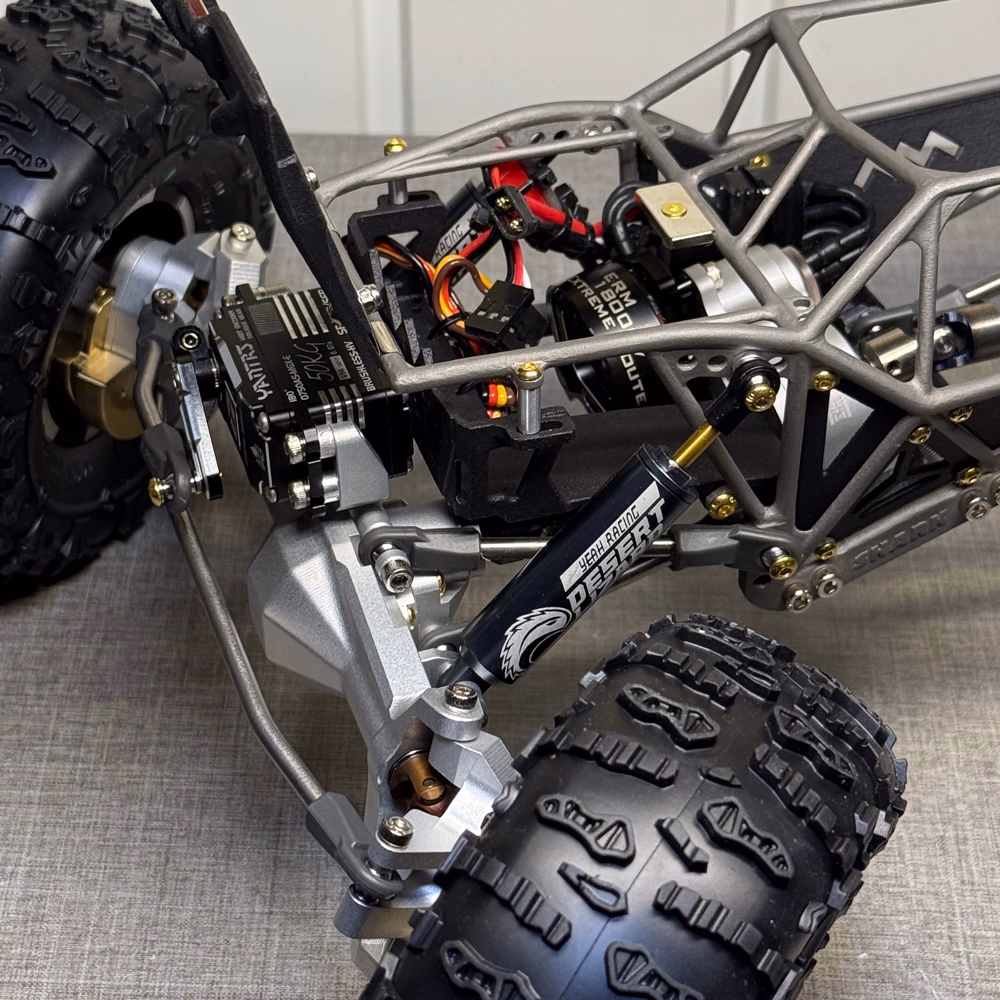

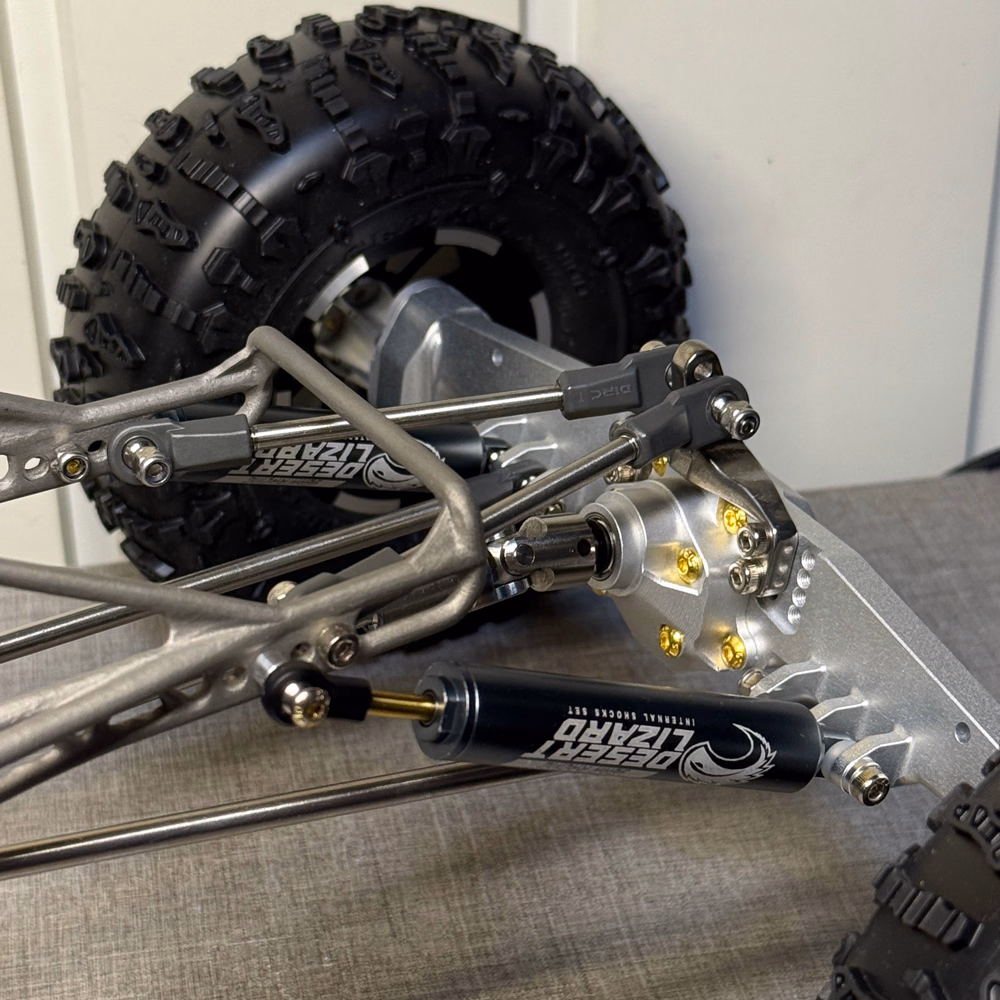

• Shocks: YR Reverse-Pull Negative Pressure Shocks (Front: 90–100mm | Rear: 100–120mm)
• Drive Shafts: D1RC Titanium Chopstick Driveshafts (Front hole-to-hole: 55–70mm recommended)
• Servo: Low-profile / Shorty servo ONLY

Available Configurations

1. KIT Version (Builder Set)

Ideal for custom builders who want to assemble their own drivetrain and electronics.

• 3D-Printed Titanium Tube Cage
• PA12 Printed Hood with Magnetic Latch Assembly
• PA12 Side Panels & Battery Tray
• 8x Titanium Suspension Links with Ball Ends
• High-Toughness TPU Skid Plate
• Machined Steel Drive Shafts
• 3D-Printed Titanium Rear Anti-Squat Mount

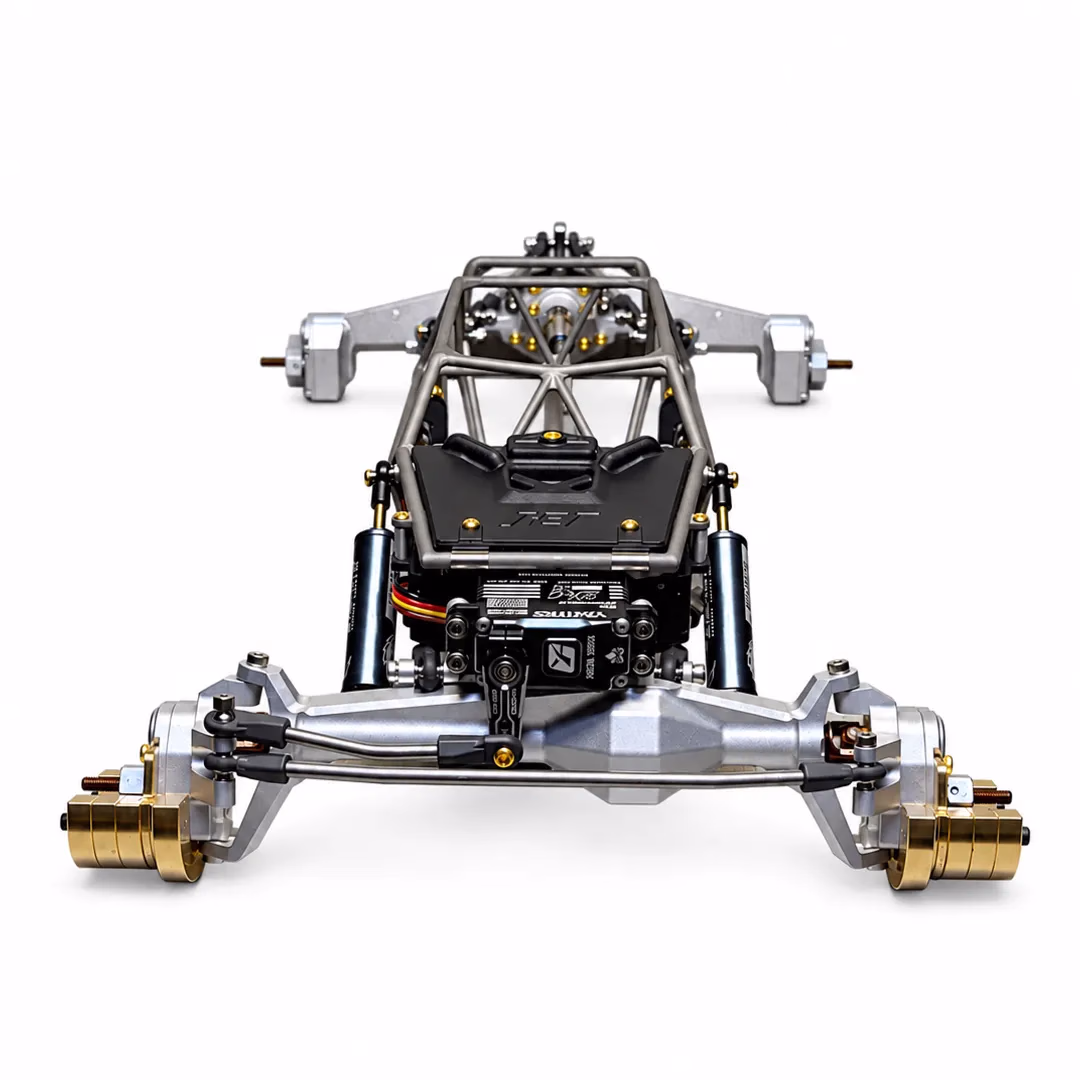

2. Roller Version (Pre-Assembled Chassis)

Get a head start with a pre-built mechanical setup.

• Includes everything in the KIT Version
• Pre-assembled Axles, Gearbox, and Shocks
• Includes pre-installed Steering Servo
• Requires: Electronics (ESC/Motor), Wheels/Tires, Wheel Weights, Battery, and Transmitter/Receiver.

3. RTR Version (Ready to Run – Less Battery & Controller)

Almost fully ready out of the box for immediate action!

• Shark Titanium Chassis：Titanium alloy 3D printed
• Front & Rear Axles：Overcamr 7075 aluminum Capra style offset axles
• R2 Transmission: D1RC Aluminum gearbox housing + Titanium alloy gear set
• Shock Absorbers: Yeah Racing Aluminum 90mm + 120mm
• Front Driveshaft: Steel driveshaft + CNC machined cutting
• Rear Driveshaft: Titanium alloy machined
• Linkages (Turnbuckles): Titanium alloy, includes steering bent links
• Rod Ends (Ball Ends): Grey nylon with 7.5mm ball studs, 10 angled & 10 straight
• Rear Axle Upper Links Mount: Titanium alloy 3D printed
• Motor: Hobbywing Fusion Elite (Integrated Motor/ESC)
• Servo: Yanchuang 50KG Low-profile servo
• Tires: JConcepts #4100, 2.2″, 133mm tire
• Foam Inserts: Chaoge Custom dual-stage foam inserts
• Wheels: Extreme Route Giant Ding 2.2 ultra-lightweight wheels
• Weights: Overcamr Brass knuckle weights, base set + 4 outer side plates, approx. 267g
• Miscellaneous: Full car 12.9 grade gold hex screws, aluminum shims, partial ball ends upgraded to 7.5, replacement shock springs, AE race shock oil, lubricants, etc.
• Requires: 3S/4S LiPo Battery, Compatible Charger, and Transmitter/Receiver.

Please note that 3D-printed metal components exhibit a distinct tactile finish compared to traditional CNC machining. The standard surface features a sandblasted finish with slight texture/stippling. Custom mirror-polishing services are available upon request if a smooth metallic sheen is preferred.
